MCK-RX26T Renesas Flexible Motor Control Kit for RX26T MCU Group
The MCK-RX26T is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors).
With this product...
Overview
Description
RX26T Group microcontrollers are 5V-compatible products which provide dual-motor control using Field Oriented Control (FOC) and Power Factor Correction (PFC) control on a single chip. The RXv3 core, a 3rd generation RX CPU core operating at 120 MHz, flash memory capable of 120 MHz read operations, and a trigonometric function unit (TFUv2) provide a higher level of compute performance. The timer functions support 120MHz PWM (3-phase complementary x 2 channels + single-phase complementary x 2 channels), and analog function is provided by 12-bit A/D converter x 3 units (2 units with a 3-channel simultaneous sample & hold circuit). The lineup includes a HOCO with guaranteed oscillation accuracy of ±1.0% (-20°C≤Ta), data flash memory, a single-ended PGA, comparator and other components in a compact QFN package attributes to reduction in the number of components and space saving. In addition, it offers CAN-FD for high-speed inter-device communication and I3C Basic for high-speed communication with sensors which enable faster data transfers. The flash memory has a dual bank configuration, and the BGO/SWAP function to enable rewriting of the firmware without system stoppage. Trusted Secure IP-Lite with its integrated key management function and cryptographic engine reduces the risk of information leaks from the system.

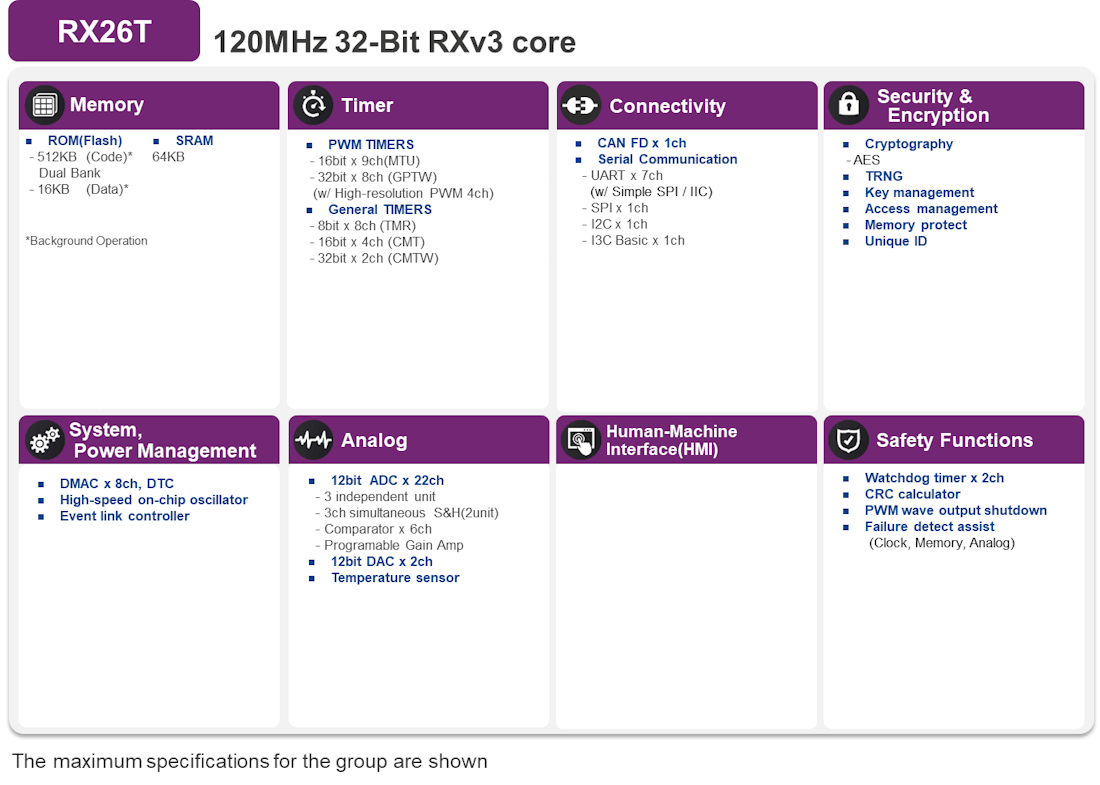

Features
- 120 MHz CPU RXv3 core (721 CoreMark)
- Single-precision FPU, batch register save function for faster interrupt response, Trigonometric Function Accelerator (TFUv2)
- Operating temperature -40°C to 105°C
- Up to 512 KB flash memory (120 MHz read access, dual bank function), up to 64 KB SRAM
- 16KB data flash that can store data like an EEPROM
- 12-bit A/D converter x 3 units, 12-bit D/A converter x 2 channels
- Comparator x 6 channels, single-ended PGA x 6 channels
- 120 MHz PWM
- 3-phase complementary x 2 channels, 5-phase complementary x 1 channel, single-phase complementary x 8 channels
- High-resolution PWM x 4 channels with timing adjustment down to 260 ps (picoseconds)
- +/-1.0% accuracy high-speed on-chip oscillator
- Trusted Secure IP-Lite (AES/TRNG)
- CAN FD (ISO 11898-1:2015 compliant, max. 5 Mbps)
- I3C Basic (max. 10 Mbps)
Comparison
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| Simulator for CS+ of RX Family Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)
|
Other Emulators and Options | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | Renesas |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | Renesas |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | Renesas |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | Renesas |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
| Simulator for e² studio of RX Family Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
|
Simulator | Renesas |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | Renesas |
|
26 items
|
||
Sample Code
Boards & Kits
MCB-RX26T Type A / CPU Board for RX26T MCU Group
This product is a CPU board for motor control equipped with RX26T. Motor control using RX26T can be easily realized by using it in combination with a supported inverter...
Featured Documents:
MCB-RX26T Type B / CPU Board for RX26T MCU Group with Trusted Secure IP (TSIP-Lite)
This product is a CPU board for motor control equipped with RX26T. Motor control using RX26T can be easily realized by using it in combination with a supported inverter...
Featured Documents:
MCB-RX26T Type C / CPU Board for RX26T MCU Group
This product is a CPU board for motor control equipped with RX26T (P/N:R5F526TACDFM). Motor control using RX26T can be easily realized by using it in combination with a supported inverter board.
Featured Documents:

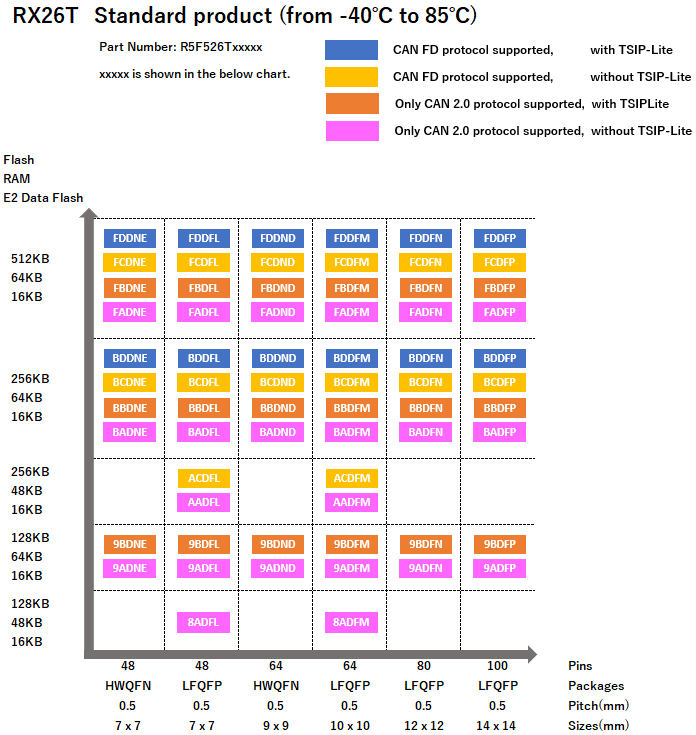

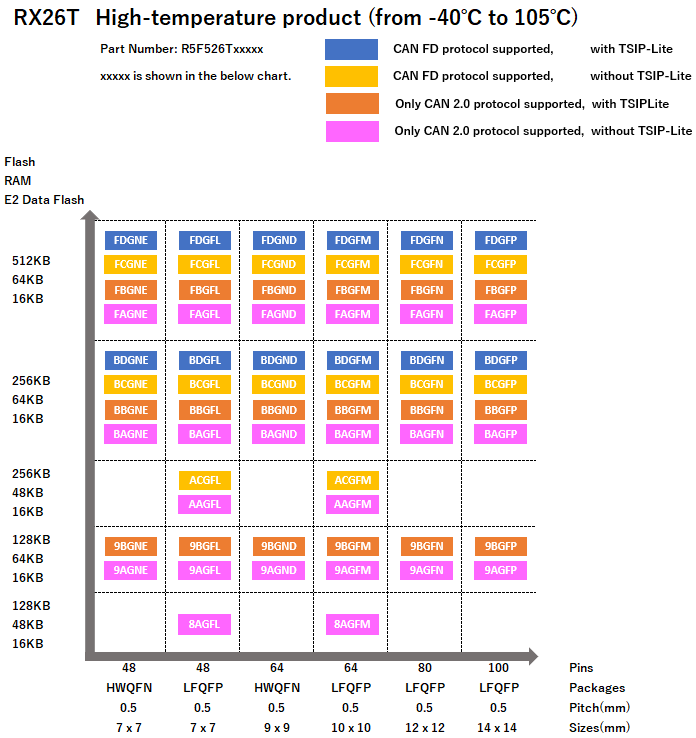

Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||||||||||||||||||||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | 3.504 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | 3.847 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 3.786 | ||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.177 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | 3.482 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | 3.213 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | 3.502 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | 4.304 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | 4.095 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.032 | ||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.443 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | 3.723 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | 3.143 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | 3.73 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | 4.016 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | 3.925 | ||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | 4.3 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.195 | ||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.62 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | 3.921 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | 3.333 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | 3.985 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 10 x 10 x 1.7 | 3 | 4.275 | ||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | 4.182 | ||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 12 x 12 x 1.7 | 3 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 14 x 14 x 1.7 | 3 | 4.959 | ||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 9 x 9 x 0.8 | 3 | |||||
| Tray (Full Carton) | 2033 Dec | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | |||||
| Tray | N/A | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 0.8 | 3 | 3.546 | ||||
| Tray (Full Carton) | TBD | RXv3 | 256 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | |||||
| Tray | TBD | RXv3 | 256 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | 1 | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 0 | 12-bit x 2-ch | No | 2 | Yes | 7 x 7 x 1.7 | 3 | 3.502 |
