概要

The ISL80136 is a high voltage, low quiescent current linear regulator ideally suited for “always-on” and “keep alive” applications. The ISL80136 operates from an input voltage of +6V to +40V under normal operating conditions, consuming only 18µA of quiescent current at no load. The ISL80136 offers adjustable output voltages from 2.5V to 12V. It features an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 1.8µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80136 is rated across the -40°C to +125°C temperature range and is available in an 8 lead EPSOIC with an exposed pad package.

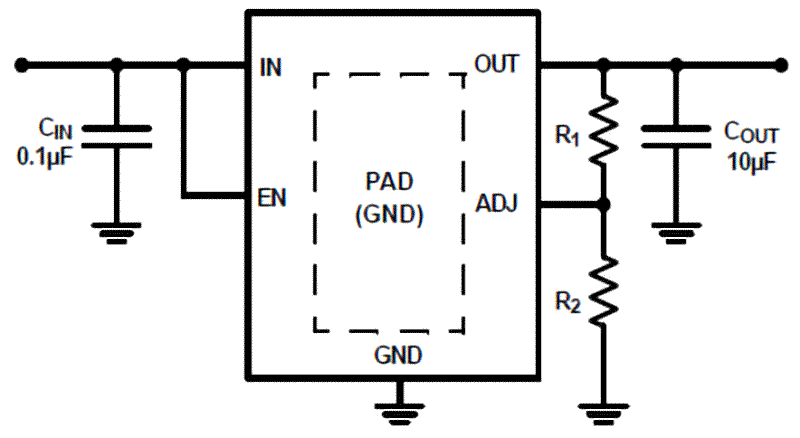

ISL80136 Functional Diagram
ISL80136 Functional Diagram
  • Wide VIN range of 6V to 40V
  • Adjustable output voltage from 2.5V to 12V
  • Ensured 50mA output current
  • Ultra low 18µA typical quiescent current
  • Low 1.8µA of typical shutdown current
  • ±1% accurate voltage reference (over temperature, load)
  • Low dropout voltage of 120mV at 50mA
  • Low 26µVRMS noise
  • 40V tolerant logic level (TTL/CMOS) enable input
  • Stable operation with 10µF output capacitor
  • 5kV ESD HBM rated
  • Thermal shutdown and current limit protection

アプリケーション

  • Industrial
  • Networking
  • Telecom

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
ISL80136 Japanese Datasheet
PDF 559 KB 英語
Product Advisory
PA19027 - Package Outline Correction for 8L / SOIC-EP
PDF 314 KB
製品変更通知
PCN13060 - Test Site Change for the Listed Intersil Products
PDF 223 KB
アプリケーションノート
AN1681: Grounding Techniques
PDF 509 KB
アプリケーションノート
AN1684: Nonideality of Ground
PDF 397 KB
5件

設計・開発

ISL80138EVAL1Z 150mA Linear Regulator Eval Board

ISL80136EVAL1Z

Evaluation
詳しくはこちら

40V, Low Quiescent Current, 50mA/150mA Linear Regulator Evaluation Board

The ISL80136EVAL1Z evaluation board is used to evaluate the performance of the ISL80136 high voltage linear regulator. The evaluation board is available with jumpers to...

主要ドキュメント:
ISL8013xEVAL1Z User Guide

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    ISL80136IBEAJZ
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		SOICN-EP Tube サンプルを入手,
    ISL80136IBEAJZ-T
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    		 SOICN-EP Reel サンプルを入手,
