9FGV1008

アクティブ
2040 まで有効

Programmable PhiClock™ Generator

ご購入
9FGV1004C-9FGV1008C Datasheet

概要

The 9FGV1008 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1008 provides one integer frequency, one copy of a fractional or spread spectrum output frequency, and one copy of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I2C bits allow easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I2C mode. Four unique I2C addresses are available, allowing easy I2C access to multiple components.

9FGV1004C_9FGV1008C - Block Diagram

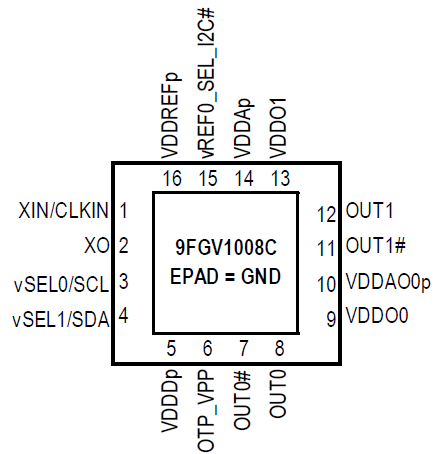

9FGV1008C - Pinout
9FGV1004C_9FGV1008C - Block Diagram
9FGV1008C - Pinout
  • PCIe Gen1–4 compliant
  • 224fs RMS typical phase jitter at 156.25MHz (12kHz–20MHz)
  • 2 programmable output pairs plus 1 LVCMOS REF output
  • 1 integer and 1 fractional or spread-spectrum output per configuration
  • 1MHz–325MHz integer outputs (LVDS or LP-HCSL)
  • 1MHz–200MHz integer outputs (LVCMOS)
  • 1.8V to 3.3V core VDD
  • Individual 1.8V to 3.3V VDDO for each programmable output pair
  • Supports HCSL, LVDS and LVCMOS I/O standards
  • Supports AC-coupled LVPECL and CML logic – see AN-891
  • 3 × 3 mm 16-LGA packages with 50MHz integrated crystal option
  • Supported by Timing Commander™ software

ドキュメント

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
9FGV100x Integer v1.4.2 Timing Commander Personality File
ZIP 3.89 MB
ソフトウェア／ツール－ソフトウェア
I2C GUI Tool Software
ZIP 9.27 MB
2件
9FGV1008 - Evaluation Board (top)

EVK9FGV1008

Evaluation
詳しくはこちら

Evaluation Kit for 9FGV1008 Programmable PhiClock™ Generator

This is the evaluation board for the 9FGV1008 programmable PhiClockTM generator. It provides a convenient way of configuring and programming the blank parts for the

主要ドキュメント:
9FGV1006 / 9FGV1008 PhiClock PCIe Evaluation Board User Guide

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models
本デバイスは、ルネサス事業所でのプログラム書き込みが可能です。カスタムプログラムユーティリティをお試しください。
