GreenPAK DIP Adapter for GreenPAK Advanced Development Board
The GreenPAK DIP Adapter for the GreenPAK Advanced Development Board allows using the SLG46xxxV-DIP and SLG47xxxV-DIP Proto boards with the GreenPAK Advanced...
概要
説明

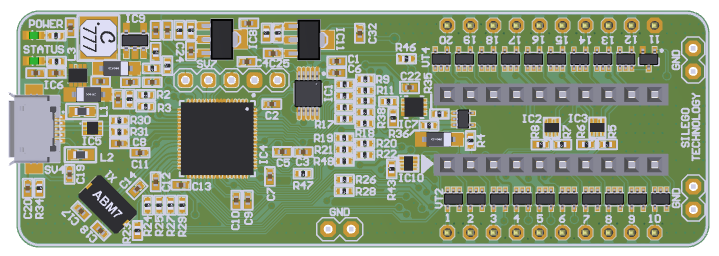

The GreenPAK DIP Development Board is perfect for breadboarding and fast prototyping. It works in tandem with the GreenPAK Designer software (built into Go Configure™ Software Hub), GreenPAK DIP Development Board allows designers to:
- Program custom samples in minutes
- Test GreenPAK projects in-circuit
Kit Contents
- DIP Development Board
- USB cable
- Quick Start Guide
Please note DIP Proto Boards should be ordered separately
特長
- USB interface
- MacOS, Windows and Linux compatible
- Programming and Emulation
- Gated expansion header for connection to external test equipment
アプリケーション
設計・開発
