概要

The RAA223182 is an off-line Flyback regulator with a 1000V integrated MOSFET, designed for high input voltage applications such as 3-phase electric meter power supplies and other generally isolated power supplies. The RAA223182 can deliver up to 11W from the universal 3-phase input voltage.

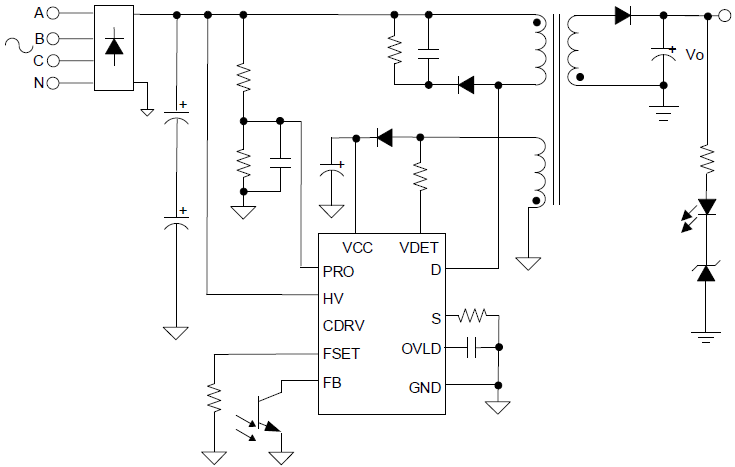

RAA223182 - Typical Flyback Circuit

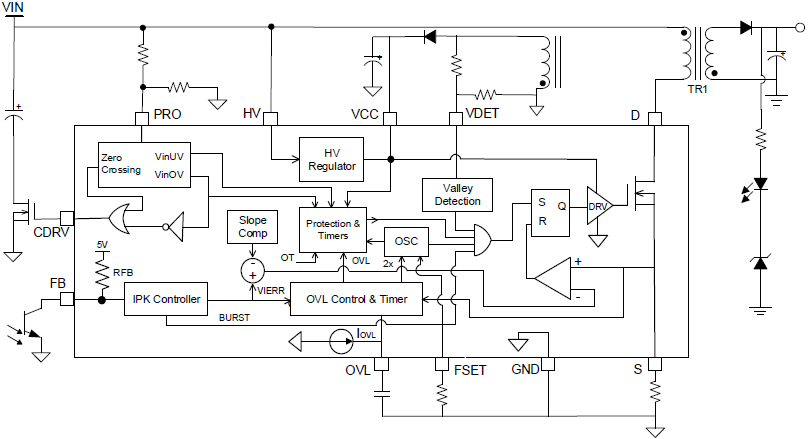

RAA223182 - Block Diagram
RAA223182 - Typical Flyback Circuit
RAA223182 - Block Diagram
  • Flyback regulator with 1000V 9Ω MOSFET
  • Frequency doubling for heavy load operation (21W and above), for a programmable duration (maximum time depends on thermal capability)
  • Fault-tolerant input overvoltage protection
  • Valley switching to reduce switching losses
  • Programmable constant frequency PWM operation
  • Burst mode operation at light load
  • Protection features: short-circuit protection (SCP), overload protection (OLP), input undervoltage lockout (VinUV), input OVP, VCC overvoltage protection (VccOV), VCC undervoltage lockout (VccUV) and over-temperature protection (OTP).

アプリケーション

  • Smart Meter
  • Large appliances
  • Industry control

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
RAA223182 Datasheet
PDF 2.64 MB
アプリケーションノート
AN1681: Grounding Techniques
PDF 509 KB
アプリケーションノート
AN1684: Nonideality of Ground
PDF 397 KB
3件

設計・開発

RTKA223182DR0000BU Flyback Regulator Demonstration Board - Top

RTKA223182DR0000BU

Demonstration
詳しくはこちら

Dual Output 11W 3-Phase Input Flyback Demonstration Board

The RTKA223182DR0000BU dual output 11W universal input flyback demonstration board featuring the RAA223182 1000V regulator demonstrates a low-cost, high-performance...

主要ドキュメント:
RTKA223182DR0000BU Demonstration Board Manual

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    RAA2231824GSP#HA0
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    		 SOICN Reel 3 サンプルを入手,
