Renesas Starter Kit+ for RX65N-1MB (Discontinued product)
The Renesas Starter Kit+ for RX65N is the perfect starter kit for developers who are new to the RX65N. The kit includes an LCD display module, on-chip debugging...
Overview
Description

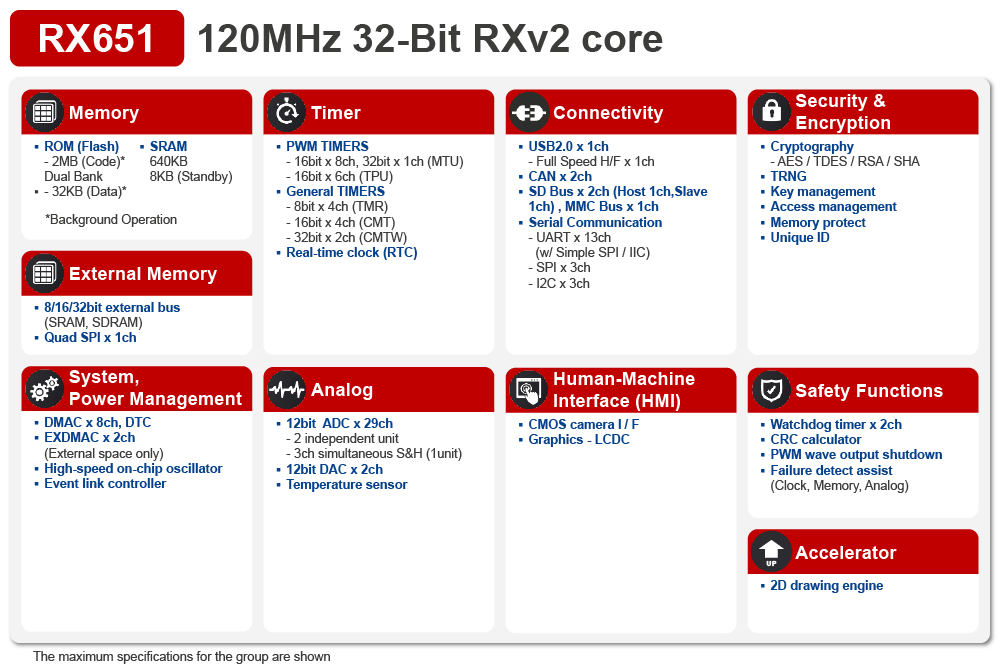

The Renesas RX651 is mainstream RX microcontrollers with RXv2 core, large-capacity RAM, and enhanced security, connectivity and human machine interface (HMI) capabilities.
Features
- RXv2 Core 120 MHz operation (34 CoreMark/mA), single-precision FPU
- 2.7 to 3.6 V operation
- A wide package lineup : 64-pin (4.5mm x 4.5mm, BGA) to 176-pin
- Equipped with various communication interfaces such as USB, CAN, SD host/slave interface, and quad SPI.
- Program Flash up to 2 MB, SRAM up to 640 KB
- DualBank function convenient for firmware update *1
- HMI
- TFT-LCD controller and 2D drawing engine can reduce CPU load at running of LCD display.*1
Security
- Equipped with memory protect functions that protect Flash memory from unintended access to flash
- Equipped with a trusted secure IP that protects key data from disclosure *1
- Equipped with various encryption engines : AES, TRNG, TDES *1, RSA*1, SHA*1
[*1 : Only products with 1.5 MB or more code flash memory]
Comparison
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Sub-GHz/Wi-SUN Protocol Stack Software stack for Sub-GHz/Wi-SUN wireless network applications
|
Protocol Stack | Renesas |
| DALI Master Controller GUI The DALI Master Controller GUI controls an RL78/I1A lighting communication master evaluation board
|
Code Generator | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | Renesas |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family
|
File System | Renesas |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| MultiMediaCard / eMMC Driver for RX Family Device driver for controlling MultimediaCard using MultimediaCard Interface (MMCIF) built-in the MCU
|
eMMC | Renesas |
| TCP/IP protocol stack [M3S-T4-Tiny] for RX Family Ultracompact TCP/IP protocol stack (high-speed version) for RX
|
Protocol Stack | Renesas |
| SD Card Driver for RX Family SD Card Driver for RX Family (SDHI)
|
SD Card | Renesas |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | Renesas |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | Renesas |
| Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family
|
Sound / Voice | Renesas |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | Renesas |
| Code Generator Plug-in Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
|
Code Generator | Renesas |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | Renesas |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | Renesas |
| QE for USB: A Dedicated Tool for USB [Technical Preview Edition] Debugging assistance tool for developing systems which use the USB [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | Renesas |
|
33 items
|
||
Sample Code
Boards & Kits
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD...
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers....
Featured Documents:
RX65N Envision Kit
The Envision Kit allows quick and easy evaluation of the RX65N microcontrollers group, which is an excellent choice for your next low cost HMI (Human Machine Interface)...
Featured Documents:
Target Board for RX65N
The Target Board for RX65N provides an entry point to evaluation, prototyping and developing for the RX65N MCU. Moreover, since this board incorporates an emulator...
Featured Documents:
CPX3 Evaluation Kit for DC under 48V (J80D1 with RX651+Audio circuit)
The Renesas CPX3 Evaluation Kit J80D1 is a power line communication (PLC) evaluation kit for direct current (DC) power lines that can be used to carry out software...
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With...
Hybrid PLC and Sub-GHz Communication Evaluation Kit
This product is an evaluation kit for developing software and evaluating systems compatible with Renesas' PLC modem IC R9A06G037 and Renesas’ Sub-GHz wireless IC...
Featured Documents:
Industrial Automation Functional Safety Reference Board - Reference Evaluation Board with RX MCU
The industrial automation functional safety reference board enables evaluation of Renesas safety software and contains detailed design and safety analysis based on...
Featured Documents:
CPX4 DC-PLC Evaluation Kit M01D1
This product is an evaluation kit for DC-based power line communication for developing software and evaluating systems compatible with Renesas' PLC modem IC R9A06G061....
CPX4 AC-PLC Evaluation Kit M02D2
This product is an evaluation kit for AC power line communication for developing software and evaluating systems compatible with Renesas' PLC modem IC R9A06G061. This...
Smart Lock with AWS IoT Development Kit
The demand for smart locks is a rapidly growing segment for the home and building automation industries. This smart door lock solution features fingerprint control and...
Featured Documents:
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
Security & Encryption |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||||||||||||||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | |||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.338 | |||
| Tray | 2033 Dec | RXv2 | 512 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 3.925 | |||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.186 | |||
| Tray | 2033 Dec | RXv2 | 768 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.186 | |||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 4.711 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.326 | |||
| Tray | 2033 Dec | RXv2 | 1024 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.225 | |||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 4.763 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.783 | |||
| Tray | 2033 Dec | RXv2 | 1024 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | ||||
| Tray | 2033 Dec | RXv2 | 1024 | 0 | 256 | 145 | TFLGA | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | Get Samples, | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | AES(128/192/256), TRNG | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.95 | ||
| Tray | N/A | RXv2 | 1536 | 32 | 640 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 6.075 | ||
| Tray | TBD | RXv2 | 2048 | 32 | 640 | 176 | LFQFP | 2.7 - 3.6 | 120 | 137 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | No | Yes | 1 | Yes | 24 x 24 x 1.7 | 3 | 6.975 | ||
| Tray | N/A | RXv2 | 1536 | 32 | 640 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | |||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | ||||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.097 | |||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.774 | ||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | ||||
| Tray | N/A | RXv2 | 2048 | 32 | 640 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 6.55 | Get Samples, | |
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.275 | |||
| Tray | N/A | RXv2 | 2048 | 32 | 640 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 6.525 | ||
| Tray | N/A | RXv2 | 2048 | 32 | 640 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 6.113 | ||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.097 | |||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.706 | ||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.275 | |||
| Tray | 2038 Dec | RXv2 | 1536 | 32 | 640 | 176 | LFQFP | 2.7 - 3.6 | 120 | 137 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 24 x 24 x 1.7 | 3 | 6.512 | ||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.583 | ||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.206 | |||
| Tray | N/A | RXv2 | 1536 | 32 | 640 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 6.354 | ||
| Tray | 2033 Dec | RXv2 | 1536 | 32 | 640 | 176 | LFBGA | 2.7 - 3.6 | 120 | 137 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | No | Yes | 1 | Yes | 13 x 13 x 1.4 | 3 | Get Samples, | ||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.529 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.882 | ||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | AES(128/192/256), TRNG | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 5.706 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | ||||
| Tray | N/A | RXv2 | 1536 | 32 | 640 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 6.212 | ||
| Tray | 2033 Dec | RXv2 | 2048 | 32 | 640 | 176 | LFBGA | 2.7 - 3.6 | 120 | 137 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 16 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | 2D drawing engine, Camera Interface PDC, Graphics LCD Controller | No | Yes | 1 | Yes | 13 x 13 x 1.4 | 3 | 4.725 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | AES(128/192/256), TRNG | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | 6.058 | ||
| Tray | N/A | RXv2 | 1024 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.397 | |||
| Tray | 2033 Dec | RXv2 | 2048 | 32 | 640 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 14 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | |||
| Tray | 2033 Dec | RXv2 | 1536 | 32 | 640 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 14 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 5.8 | ||
| Tray | N/A | RXv2 | 1536 | 32 | 640 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | 2D drawing engine, Graphics LCD Controller | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 5.875 | ||
| Tray | N/A | RXv2 | 512 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.075 | |||
| Tray | 2033 Dec | RXv2 | 512 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | AES(128/192/256), TRNG | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.18 | |||
| Tray | 2033 Dec | RXv2 | 512 | 0 | 256 | 145 | TFLGA | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | AES(128/192/256), TRNG | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.564 | ||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 144 | LFQFP | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 20 x 20 x 1.7 | 3 | Get Samples, | ||
| Tray | N/A | RXv2 | 768 | 0 | 256 | 100 | LFQFP | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 14 x 14 x 1.7 | 3 | 4.291 | |||
| Tray | 2033 Dec | RXv2 | 768 | 0 | 256 | 100 | TFLGA | 2.7 - 3.6 | 120 | 79 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 11 | 14 | 13 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 22-ch | 0 | 12-bit x 1-ch | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.291 | |||
| Tray | 2033 Dec | RXv2 | 768 | 0 | 256 | 145 | TFLGA | 2.7 - 3.6 | 120 | 112 | No | USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1 | 13 | 16 | 15 | 2 | Yes | 8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch | 12-bit x 29-ch | 0 | 12-bit x 2-ch | Camera Interface PDC | No | Yes | 1 | Yes | 7 x 7 x 1.05 | 3 | 4.676 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
Voice Recognition Solution
This video introduces the Renesas Voice Recognition Solution.
Video List
Events & Webinars
News & Blog Posts
| Blog Post | May 19, 2023 | ||
| Blog Post | Apr 6, 2023 | ||
| Blog Post | Mar 20, 2023 | ||
| Blog Post | Feb 27, 2023 | ||
| Blog Post | Jan 23, 2023 | ||
| Blog Post | Sep 1, 2022 | ||
| Blog Post | Jul 22, 2022 | ||
| Blog Post | Jul 11, 2022 | ||
| Blog Post | Jun 27, 2022 | ||
| Blog Post | Jun 17, 2022 | ||
| Blog Post | Apr 19, 2022 | ||
| Blog Post | Apr 5, 2022 | ||
| Blog Post | Mar 11, 2022 | ||
| Blog Post | Mar 9, 2022 | ||
| Blog Post | Mar 4, 2022 | ||
| Blog Post | Jan 27, 2022 | ||
| Blog Post | Dec 1, 2021 | ||
| Blog Post | Nov 1, 2021 | ||
| Blog Post | Oct 6, 2021 | ||
| Blog Post | Sep 28, 2021 | ||
| Blog Post | Sep 17, 2021 | ||
| Blog Post | Aug 6, 2021 | ||
| Blog Post | Aug 5, 2021 | ||
| Blog Post | Jul 16, 2021 | ||
| Blog Post | Jul 12, 2021 | ||
| Blog Post | Jul 1, 2021 | ||
| Blog Post | May 20, 2021 | ||
| Blog Post | May 8, 2021 | ||
| Blog Post | Apr 27, 2021 | ||
| Blog Post | Apr 20, 2021 | ||
| Blog Post | Mar 3, 2021 | ||
| Blog Post | Feb 13, 2021 | ||
| Blog Post | Nov 26, 2020 | ||
| Blog Post | Jun 13, 2020 | ||
| Blog Post | May 28, 2020 | ||
| Blog Post | May 28, 2020 |
Resonator Information
Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
For main clock resonators/For subclock resonators:
KYOCERA: Click here for RX651 oscillation evaluation result.
Murata Manufacturing: For IC Manufacturer, select Renesas Electronics, and enter R5F5651 into the IC Part Number search box.
For information on resonators, please also refer to the following application note.
Design Guide for Main Clock Circuits and Sub-Clock Circuits Rev.1.01 (PDF | English, 日本語)
