Fast Prototyping Board for RX140 MCU Group
The Fast Prototyping Board for RX140 MCU Group comes equipped with an RX140 MCU (R5F51406BGFN). The board is inexpensive for RX140 evaluation and prototype development...
Overview
Description

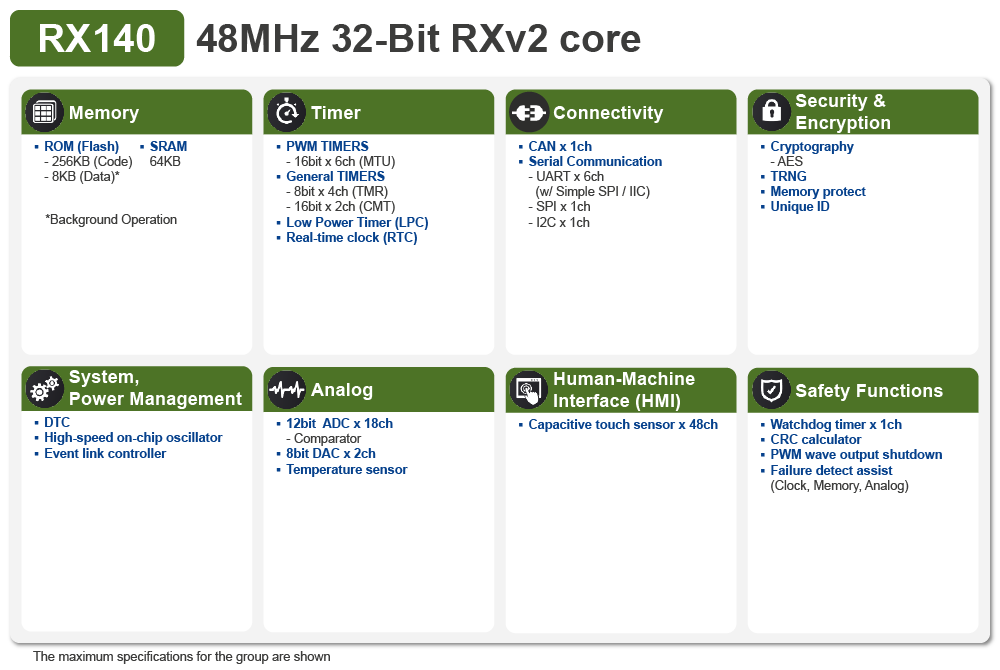

The RX140 microcontrollers in the RX100 series combine the highest processing performance and low supply current. This makes them suitable for a wide range of applications such as home appliances, industrial applications and building automation. The RX140 with an RXv2 core achieves a 48MHz maximum operating frequency, with about twice the performance of the previous RX130 operating at 32MHz. In addition, power consumption is reduced by more than 30% compared to the RX130 with 56μA/MHz during CPU operation and 0.25μA in standby mode. A new low power mode (snooze mode) also enables an additional low power consumption mode for applications that require intermittent operation. In addition, the latest capacitive touch sensor is equipped with third-generation touch IP that dramatically improves noise immunity and increases water resistance, so it can be used in a wider range of applications than ever before, including environments where noise or wet surroundings would affect accuracy. Peripheral functions have also been expanded, including CAN functionality that enables real-time communication, an AES encryption accelerator to reduce security threats such as data eavesdropping and tampering, and a true random number generator.
Features
- CPU RXv2 core (48MHz maximum operating frequency), single-precision FPU
- Low power consumption (56μA/MHz during CPU operation, 0.25μA in standby mode)
- Up to 256KB flash memory and 64KB SRAM
- 8KB data flash that can store data just like an EEPROM
- High-speed on-chip oscillator with +/- 1.0% accuracy
- 1.8V to 5.5V wide operating voltage range
- Updated Capacitive Touch Sensing Unit
- SCI (UART, Simple SPI, Simple I2C)
- SPI/I2C Multi-Master Interface
- CAN Interface
- 12-bit A/D converter, 8-bit D/A converter, temperature sensor
- 32-bit general-purpose PWM timer, 16-bit general-purpose PWM timer, low power asynchronous general-purpose timer
- Real-Time Clock
- Security (AES encryption, true random number generator)
- Enhanced Safety functionality
- Pin and peripheral compatibility with RX130
- Diverse package lineup from 32 to 80-pin, including QFP and QFN options
Comparison
Applications
Applications
- Home appliances
- Industrial
- Building automation
- Home automation
- Consumer
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | Renesas |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)
|
Other Emulators and Options | Renesas |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | Renesas |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | Renesas |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | Renesas |
|
22 items
|
||
Sample Code
Boards & Kits
Target Board for RX140
The Target Board for RX140 is an evaluation board for initial deployment consideration that is both inexpensive and provides access to all of the RX140 signal pins. In...
Featured Documents:
Capacitive Touch Evaluation System for RX140
The RX140 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box...
Renesas Starter Kit for RX140
The Renesas Starter Kit for RX140 is the perfect starter kit for developers who are new to the RX140 (Code Flash 256KB, Pin Count 80-pin). The kit includes an LCD...
Touch-Free User Interface Reference Design
The 3D Gesture Reference Design is a solution that can detect the position (x, y and z coordinates) of a hand in space using Renesas' capacitive touch solution. The...
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Serial LCD + Touch Demonstration Kit
The Serial LCD + Touch demonstration kit can display a microwave-style operation screen on a QVGA LCD module connected via SPI to an RX Family MCU. The capacitive-touch...
Self-Capacitance Waterproof Button Solution
The Renesas capacitive sensor, CTSU2 can utilize an active shield without any external components. Active shielding is effective in improving water resistance as well...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) |
DAC |
Human Machine Interface |
Security & Encryption |
RTC |
Watchdog Timer (ch) |
LVD or PVD |
Pkg. Dimensions (mm) |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||||||||||||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.225 | Get Samples, | ||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.719 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.712 | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | 2.603 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.642 | |||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.599 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.598 | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | 2.037 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | 2.037 | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.89 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.883 | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | 2.775 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.817 | |||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | ||||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.769 | |||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | 2.175 | |||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | 2.655 | |||
| Tape | N/A | RXv2 | 256 | 8 | 64 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 256 | 8 | 64 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | ||||
| Tray | N/A | RXv2 | 256 | 8 | 64 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | 2.68 | |||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.171 | |||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.171 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.166 | |||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | 1.676 | |||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | 2.068 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.1 | |||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 1.663 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.064 | |||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | 1.593 | |||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | 1.962 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 48 | LFQFP | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 1.7 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | ||||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 48 | HWQFN | 1.8 - 5.5 | 48 | 40 | No | 5 | 6 | 6 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 11-ch | 0 | No | Capacitive Sensing Unit 24ch | No | No | 1 | Yes | 7 x 7 x 0.8 | 3 | 1.981 | |||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.331 | |||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 1.887 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 80 | LFQFP | 1.8 - 5.5 | 48 | 72 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 18-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 36ch | No | Yes | 1 | Yes | 12 x 12 x 1.7 | 3 | 2.325 | |||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | 1.775 | |||
| Tape | N/A | RXv2 | 128 | 8 | 32 | 64 | LFQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 10 x 10 x 1.4 | 3 | ||||
| Tray (Full Carton) | N/A | RXv2 | 128 | 8 | 32 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | ||||
| Tray | N/A | RXv2 | 128 | 8 | 32 | 64 | LQFP | 1.8 - 5.5 | 48 | 56 | No | 6 | 7 | 7 | 1 | Yes | 8-bit x 4-ch, 16-bit x 9-ch | 12-bit x 15-ch | 0 | 8-bit x 2-ch | Capacitive Sensing Unit 32ch | No | Yes | 1 | Yes | 14 x 14 x 1.4 | 3 | 2.196 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
High Performance and Power Efficient RX140
More than 30 percent better power efficiency and twice the processing performance of RX130 group MCUs. Embedded with advanced capacitive touch IP and security features, RX140 MCUs enable your system to be smarter. Learn more about the key benefits in the video.
Video List
News & Blog Posts
| Blog Post | Nov 21, 2023 | ||
| Blog Post | Oct 20, 2023 | ||
| Blog Post | Jul 20, 2023 | ||
| Blog Post | Jun 12, 2023 | ||
| Blog Post | May 25, 2023 | ||
| Blog Post | Apr 6, 2023 | ||
| Blog Post | Mar 20, 2023 | ||
| Blog Post | Feb 27, 2023 | ||
| Blog Post | Jan 23, 2023 | ||
| Blog Post | Dec 5, 2022 | ||
| Blog Post | Nov 15, 2022 | ||
| Blog Post | Sep 16, 2022 | ||
| Blog Post | Sep 1, 2022 | ||
| Blog Post | Jul 22, 2022 | ||
| Blog Post | Jul 11, 2022 | ||
| Blog Post | Jun 17, 2022 | ||
| Blog Post | May 17, 2022 | ||
| Blog Post | Apr 28, 2022 | ||
| Blog Post | Apr 19, 2022 | ||
| Blog Post | Apr 5, 2022 | ||
| Blog Post | Mar 22, 2022 | ||
| Blog Post | Mar 9, 2022 | ||
| Blog Post | Mar 4, 2022 | ||
| Blog Post | Jan 27, 2022 | ||
| Blog Post | Dec 10, 2021 | ||
| Blog Post | Dec 1, 2021 | ||
| Blog Post | Oct 6, 2021 | ||
| Blog Post | Sep 29, 2021 | ||
| Blog Post | Sep 28, 2021 | ||
| Blog Post | Sep 17, 2021 | ||
| Blog Post | Aug 6, 2021 | ||
| Blog Post | Aug 5, 2021 | ||
| Blog Post | Jul 16, 2021 | ||
| Blog Post | Jul 12, 2021 | ||
| Blog Post | Jul 1, 2021 | ||
| Blog Post | Apr 27, 2021 |
Resonator Information
Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
For main clock resonator/subclock resonator:
NIHON DEMPA KOGYO: Please see IC Matching Information in the RX140 column.
KYOCERA: Click here for RX140 oscillation evaluation result.
Murata Manufacturing: Please enter "RX140" or "R5F5140" into the IC Part Number search box. For main clock resonator / sub clock resonator.
Seiko Instruments: Please see the matching data in the RX140 column.
For information on resonators, please also refer to the following application note.
Design Guide for Main Clock Circuits and Sub-Clock Circuits Rev.1.01 (PDF | English, 日本語)
