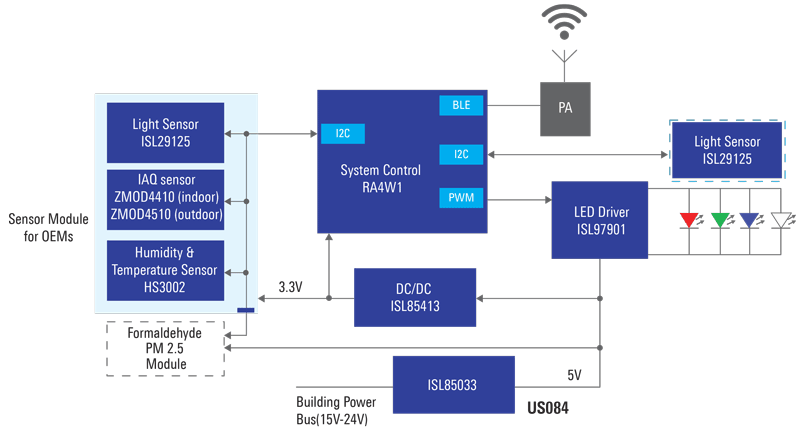

Smart lighting in building automation is becoming ubiquitous. Adding air quality sensors to connected control systems enhances human comfort and safety. This system combines LED control with environmental sensors capable of detecting high concentrations of volatile organic compounds (VOCs) and estimating the concentration of carbon dioxide (eCO2) in rooms.

System Benefits​:

  • MCU with integrated Bluetooth® Low Energy (LE) 5.0 for secure connectivity and mesh networking
  • Simultaneous multi-sensor measurements of all relevant air quality parameters​
  • PWM for LED intensity control
